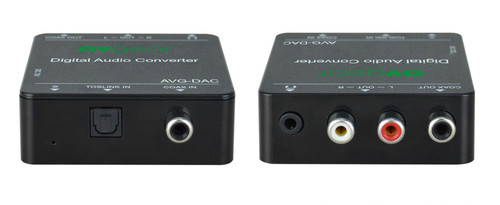

Digital Audio Converter

AVGear

SKU:
AVG-DAC
Digital Audio Converter

Description

The AVG-DAC Digital Audio Converter is designed to convert coaxial or Toslink digital audio input into analog L/R and 3.5mm audio output. Simultaneously, the converter provides COAX SPDIF output for digital audio extension. Features
  • Features audio distribution splitting one audio source into three audio outputs.
  • Converts coaxial or Toslink digital audio input to analog L/R and 3.5mm audio output.
  • COAX SPDIF output for digital audio extension.
  • Supports up to 24-bit/192 KHz input (PCM, Dolby Digital or DTS formats for digital audio extension only).
  • Provides Micro-USB port for power connection.
  • Easy to install and simple to operate.
  • Compatible with coaxial or Toslink interface digital audio devices: CD/DVD, PS3, X-Box360, Blue-ray player, Computer, A/V receiver, etc.

Extra Information

Brand:
AVGear


Specifications

Audio Input
Audio Input (1) TOSLINK IN, (1) COAX IN
Audio Format LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1CH (Only PCM supports format conversion)
Sample Rate 32, 44.1, 48, 96, 192KHz, up to 24bit
Analog Audio Output
Audio Output (1) 3.5mm stereo audio, (1) L-OUT-R (RCA)
Audio Format PCM
Frequency Response 20Hz – 20KHz, ±3dB
Max Output Level 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
THD+N < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR > 80dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation < -80dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Output Load Capability 1KΩ and higher (Supports 10x paralleled 10KΩ loads)
Background Noise -80dB
Digital Audio Output
Audio Output (1) COAX OUT
Audio Format LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1CH (Only PCM supports format conversion)
Output Level ±0.05dBFS
Frequency Response 20Hz – 20KHz, ±3dB
THD+N < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR > 90dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation < -80dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Noise Level -90dB
General
Operation Temperature -5~ +55℃
Storage Temperature -25 ~ +70℃
Relative Humidity 10%-90%
Power Supply Input:100V~240V AC; Output: 5V DC 1A
Power Consumption 1.3W (Max)
Dimension (W*H*D) 66.0mm x 22.5mm x 66.0mm
Net Weight 50g
