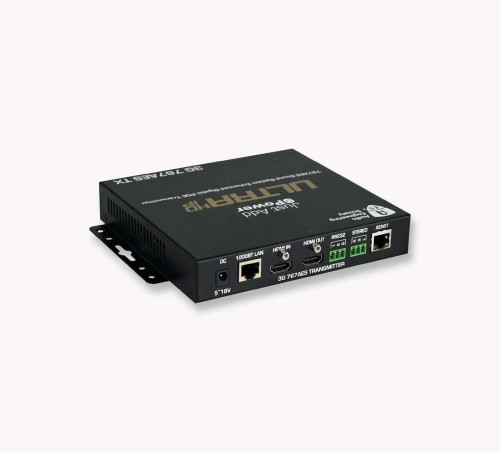

4K Transmitter with AES67 Audio (LPCM up to 8 Channels)

Just Add Power

SKU:
JAP-767AES

Description

Send and Receive up to 8-Channels. Our newest 3G Ultra AES767 Transmitter features a HDMI loopout that supports AES67 audio systems/ integration with any Just Add Power AV distribution system. Mix and match the 3G Ultra 767AES Transmitter with ANY 3G Ultra or 2G Omega devices for interoperability with leading audio-over-IP technologies.

  • Encodes a 4K or lower source device into IP & sends over the network
  • Supports HDCP 2.2
  • Supports LPCM audio up to 8 channels
  • <4ms ultra low AES67 audio latency
  • Input HDMI audio into AES67 systems
  • Extract AES67 audio for distribution to any Receiver
  • Local HDMI Loopout
  • RS232, CEC, and IR* control

Extra Information

Brand:
Just Add Power


Specifications

Bandwidth; 180-500 Mbps Compliance; HDCP 2.2 RoHS/FCC/CE Dimensions & Weight; 184 x 30 x 152 mm 7.2” x 1.2” x 6.0” inch 0.45kg / 1.0 lb Encryption; AES-128 Encryption Operating Temp; 0-60 °C / 32-140 °F POE; IEEE 802.3af (15.4W) Ports;

  • Gigabit Ethernet
  • HDMI In
  • HDMI Out
  • 3-pin Euroblock RS232
  • 3-pin Euroblock Stereo Out
  • AES67 Gigabit Ethernet
Power Supply (not included); 5V-18V 5.5mm/2.1mm, Positive tip Supported Resolutions; Up to 4096x2160 (interlaced & progressive)
